Electric Sliding Fire Partition
The STS electric sliding fire partition (model STS-P series) is a motorised large-span sliding system that can span openings from 3 m to 20 m+ in width. Typically installed with fire-rated glass panels, it allows a lobby or atrium to remain visually open during normal operation while automatically sliding closed to form a certified fire compartment upon activation of a fire signal. The DC brushless motor drive is virtually silent and the anti-pinch safety sensor prevents injury. The system integrates with BMS, fire alarm panels and access control systems.
Key Features
- Fire resistance: A60 / A90 (fire-rated glass partition version)
- Clear span up to 20 m+ (multi-panel telescopic)
- DC brushless motor — quiet, energy-efficient
- Anti-pinch infrared safety sensor
- Auto-close on fire signal (BMS / fire alarm integration)
- Fire-rated glass panels for visibility and compartmentation
- Remote control, push-button and access-card operation
- Emergency manual override function
Certifications
Technical Specifications
| Parameter | Specification |
|---|---|
| Fire Rating | A60 / A90 (glass partition version) |
| Max Clear Span | Up to 20 m+ (telescopic multi-panel) |
| Drive System | DC Brushless Motor |
| Opening Speed | 0.2 – 0.5 m/s (adjustable) |
| Max Leaf Weight | 300 kg per panel |
| Sensor Type | Infrared Anti-pinch + Microwave Presence |
| Power Supply | AC 220 V / 50 Hz |
| Integration | BMS / Fire Alarm / Access Control |
Applications
Related Products

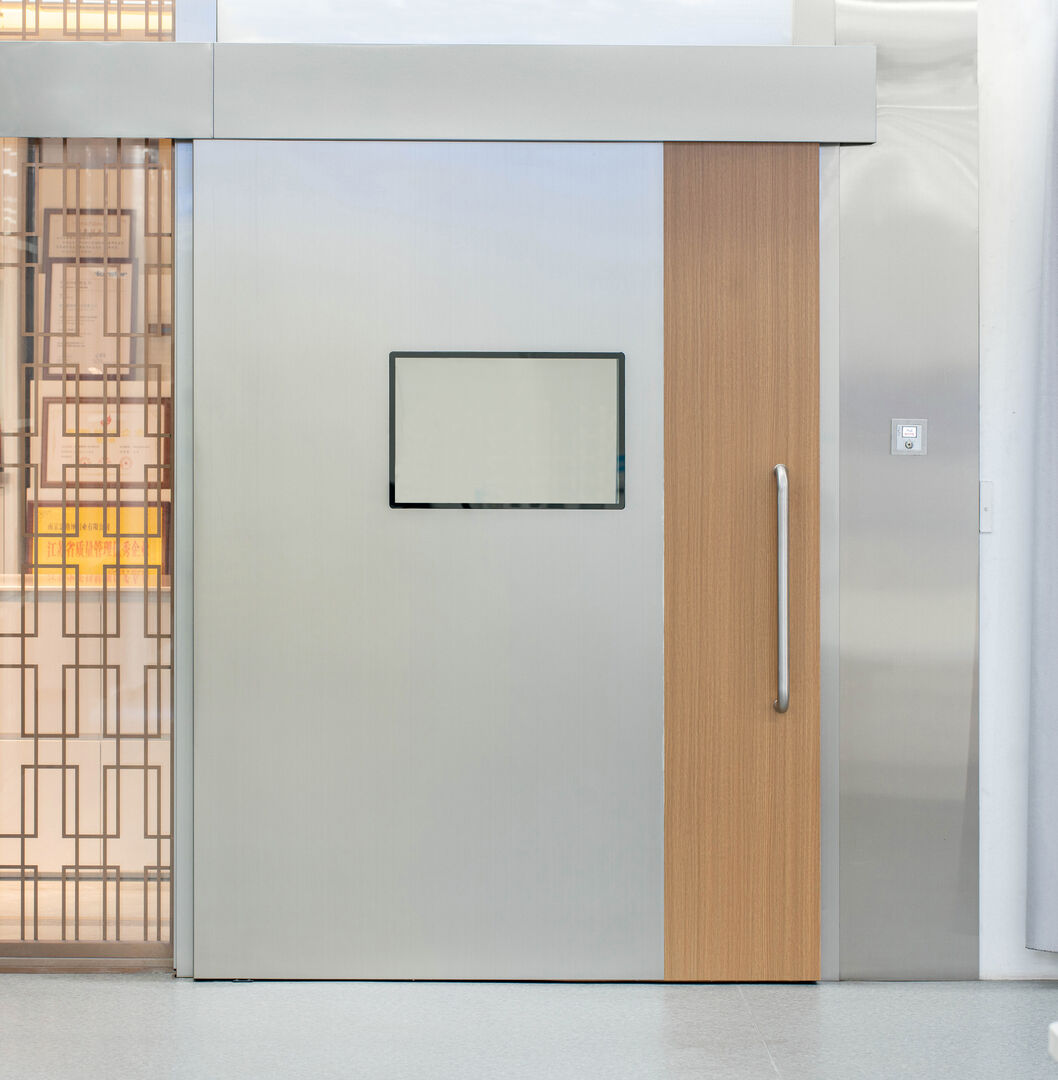

Electric Shielded Door
Motorised electromagnetic-shielded sliding door combining fire protection and EMI/RFI shielding — designed for MRI rooms, data centres and military facilities.

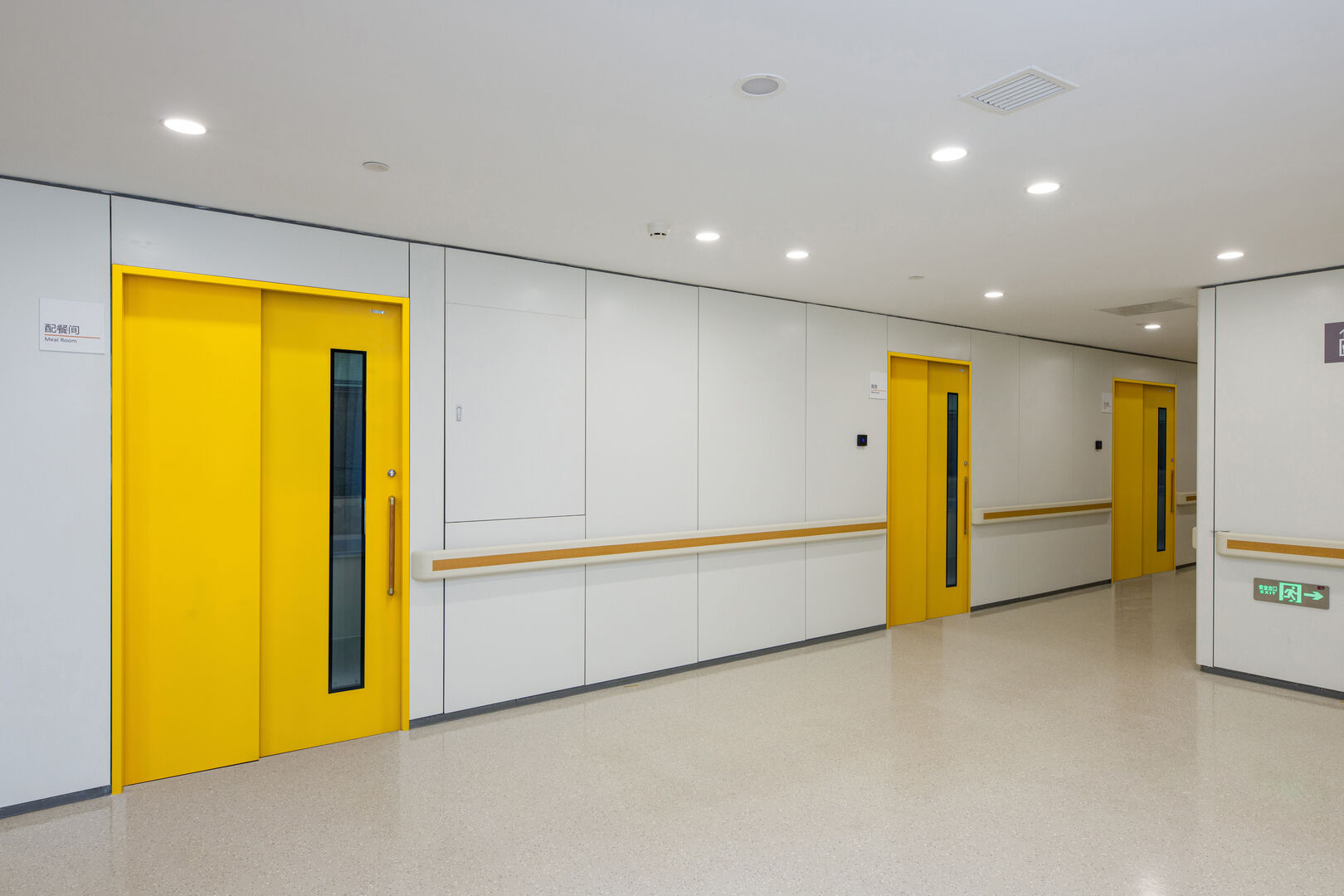

Automatic Sliding Door
