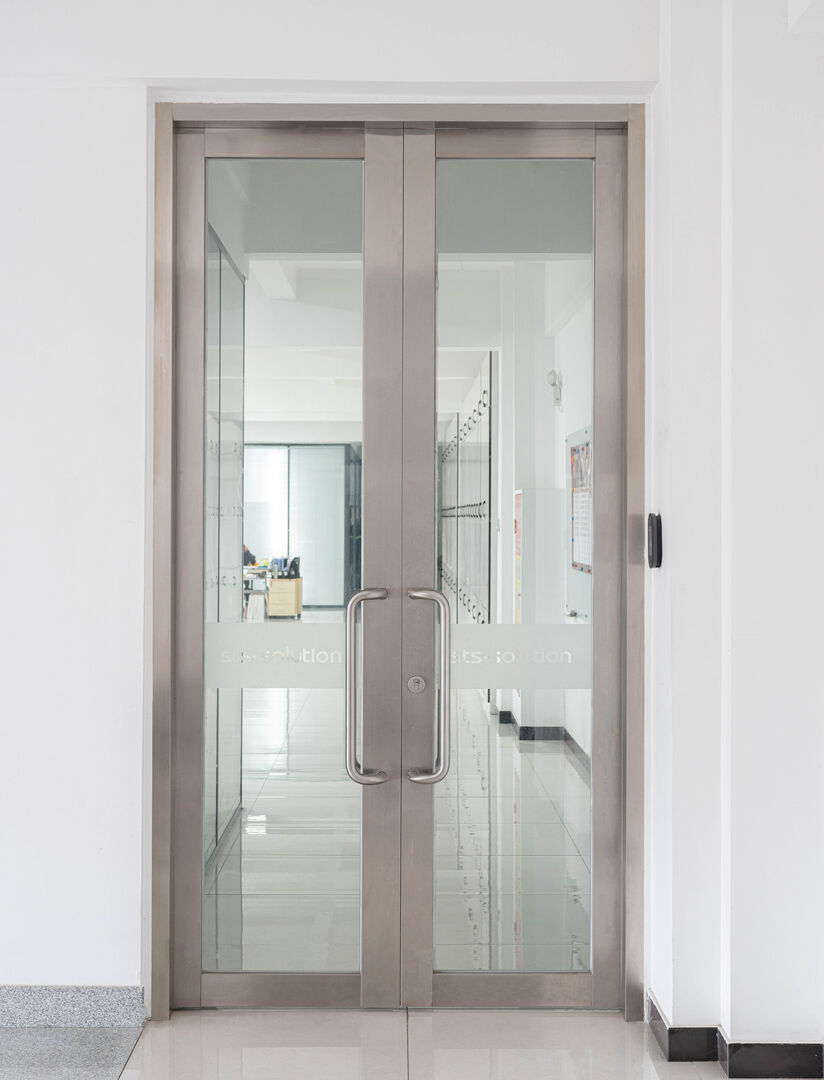

Stainless Steel Glass Fire Door
The STS stainless steel glass fire door features a stainless steel frame with a large-area fire-rated glass panel, delivering both visual openness and reliable fire compartmentation. The fire-rated ceramic or tempered glass panel is bonded to the frame with fire-resistant structural sealant, ensuring integrity throughout the rated period. Suitable for corridors, lobbies and partition walls where visibility and fire safety are both required. Available with single or double-leaf configurations and optional sidelights.
Key Features
- Fire resistance: A30 / A60 / A90
- Large-area fire-rated glass panel for maximum visibility
- 304 stainless steel frame — brushed or mirror finish
- Fire-rated ceramic or heat-soaked tempered glass
- Intumescent glazing seal activated at 160 °C
- Self-closing door closer included
- Slim profile for modern architectural aesthetics
- Optional sidelights and transoms
Certifications
Technical Specifications
| Parameter | Specification |
|---|---|
| Fire Rating | A30 / A60 / A90 |
| Frame Material | 304 Stainless Steel |
| Glass Type | Fire-rated Ceramic / Heat-soaked Tempered Glass |
| Glass Thickness | 6 mm – 20 mm (per fire rating) |
| Frame Finish | Mirror #8 / Brushed #4 |
| Leaf Thickness | 50 mm / 55 mm |
| Standard Size | 2100×900 mm / 2100×1000 mm |
| Hardware | Fire-rated Lockset, Hinges, Closer |
Applications
Related Products
Stainless Steel Fire Door
Premium 304/316 stainless steel fire doors with mirror or brushed finish — ideal for hospitals, clean rooms and high-end commercial spaces.
Wind-Resistant Fire Door
Heavy-duty stainless steel fire door engineered to withstand extreme wind pressure — built for high-rise, coastal and hurricane-zone buildings.

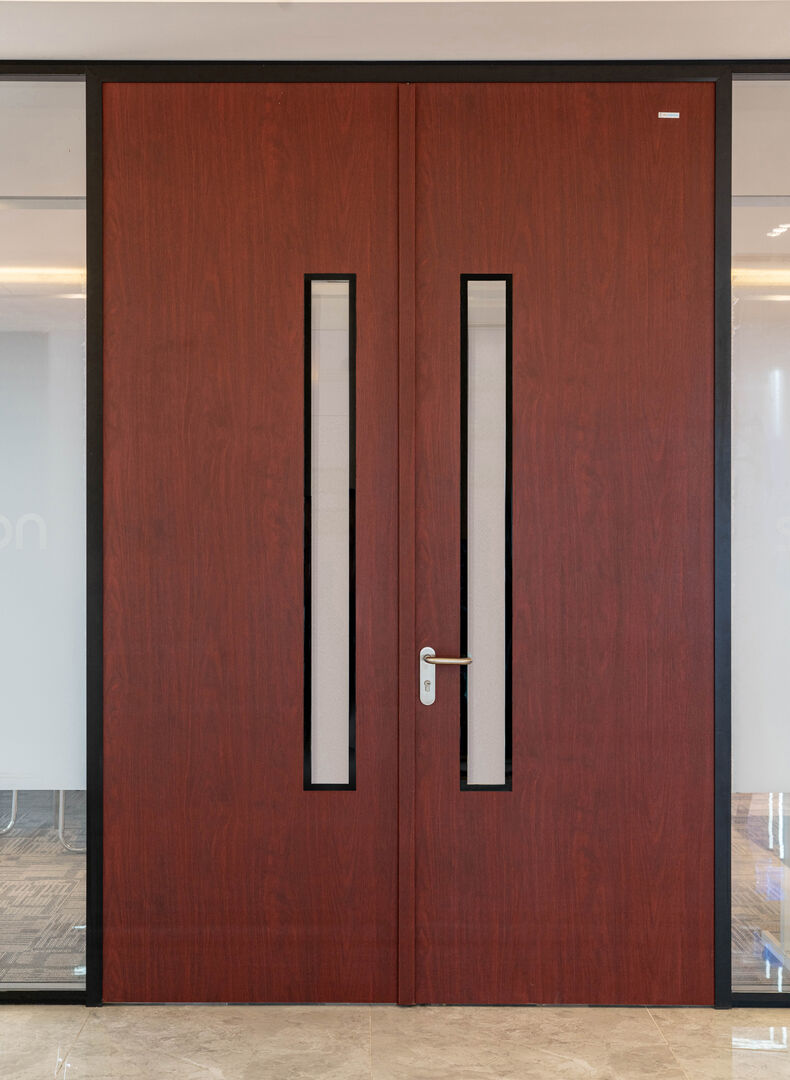

Wood Grain Fire Door
